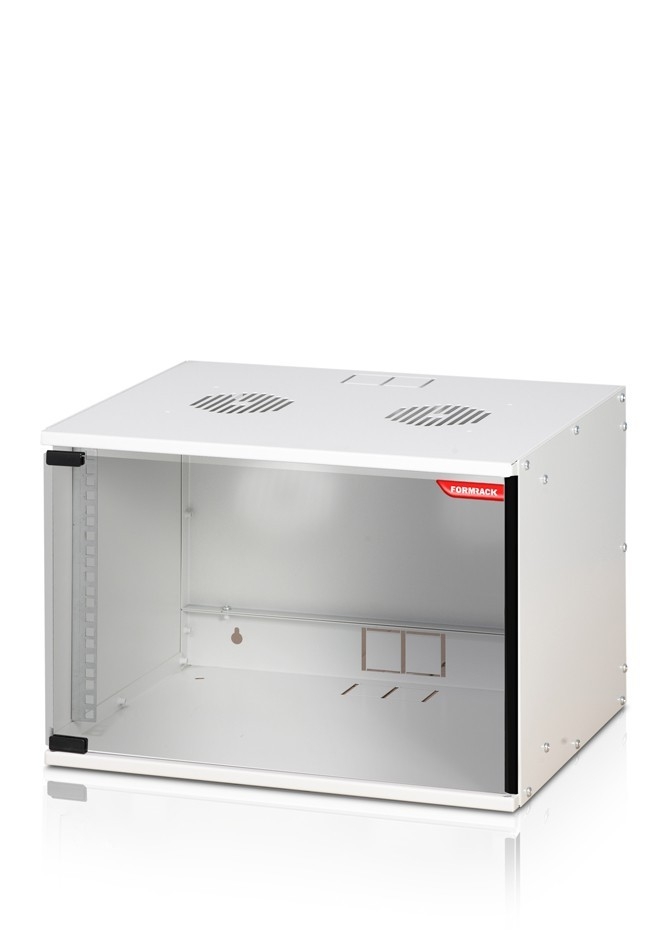

SOHO Rack Cabinet

Removable Rear Panel

Removable rear panel.

For Small Systems

Used for installation of small systems.

Glass Cover

It has a smoked glass cover on the front.

Competitive Price

Competitive price thanks to the economic production structure.

Lockable Windshield Cover

It has a 4 mm tempered glass front door with lock.

Dimension Options

Standard depth size; 400 mm and four options of height; 4U, 7U, 9U, 12U.

Cooling Units

Ventilation can be achieved by installing 1 or 2 fan modules.

Painted By Impact Resistant

Impact-resistant, high strength, electrostatic Ral 7035 Gray, optional Ral 9005 Black color.

ROSH, CE, EN 61587-1 Standards

All test procedures have been carried out and has RoSH, CE, EN 61587-1 standards.

SOHO Rack Cabinet

SOHO Rack Cabinet Properties

Removable Rear Panel

Removable rear panel.

For Small Systems

Used for installation of small systems.

Glass Cover

It has a smoked glass cover on the front.

Competitive Price

Competitive price thanks to the economic production structure.

Lockable Windshield Cover

It has a 4 mm tempered glass front door with lock.

Dimension Options

Standard depth size; 400 mm and four options of height; 4U, 7U, 9U, 12U.

Cooling Units

Ventilation can be achieved by installing 1 or 2 fan modules.

Painted By Impact Resistant

Impact-resistant, high strength, electrostatic Ral 7035 Gray, optional Ral 9005 Black color.

ROSH, CE, EN 61587-1 Standards

All test procedures have been carried out and has RoSH, CE, EN 61587-1 standards.

SOHO Rack Cabinet Specifications

  • 19" Wall Mounting SOHO Cabinet

    19" Wall Mounting SOHO Rack Cabinet

    Width: 515mm Depth: 400mm
    Order No U
    (1U=44,45 mm)
    h
    Inside Height (mm)
    H
    Outside Height (mm)
    Weight (Kg)
    FORM-SH-4U 4 181 225 9
    FORM-SH-7U 7 314 358 12
    FORM-SH-9U 9 404 448 14
    FORM-SH-12U 12 538 582 16
Click on the product code for PDF.
